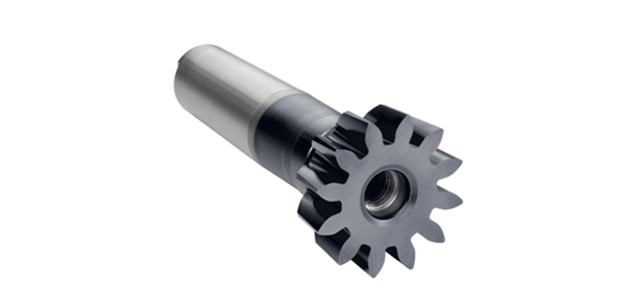

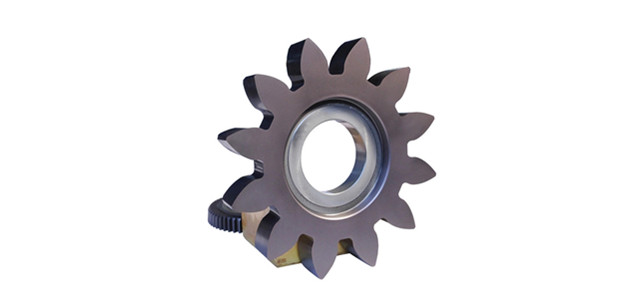

Shank Type Gear Shaping Cutter

Module: m0.8-m5,DP,PA30
Tooth profile: GB,DIN3972 standard

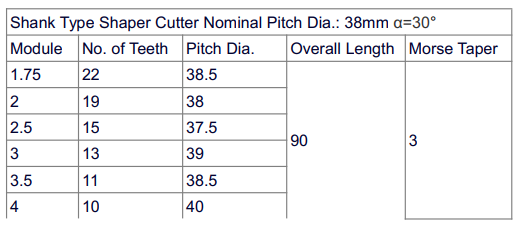

Nominal pitch dia. 25mm,38mm, and Morse Taper: number 2,3
Material:HSS M2,M35,S390
Coating: TiN, AP

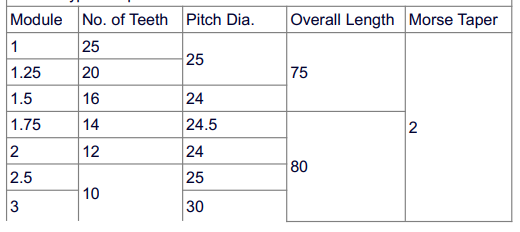

Conventional specifications of standard shank type gear shaper cutters with m1-m4 pa30 as following:

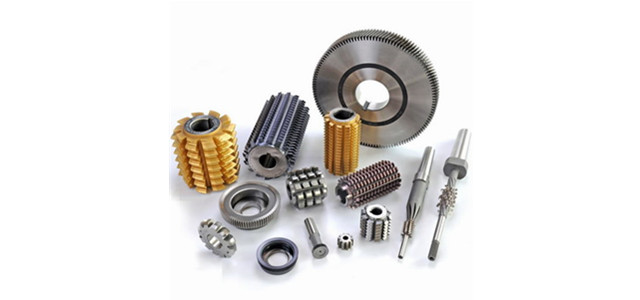

Module, DP and CP series Gear Shaper Cutters are supplied by Jiangxing Tools

Various forms of Shaper cutters such as non-topping, semi-topping, topping, finishing, roughing, pre-shaving or pre-grinding, with or without protuberance, etc., are manufactured,

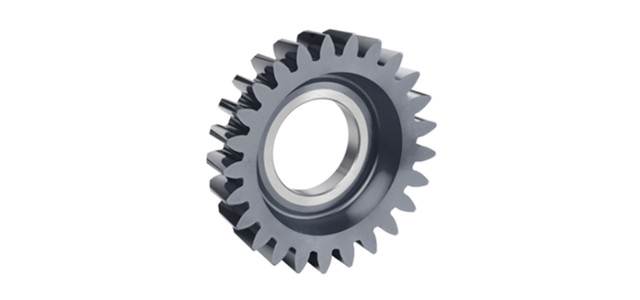

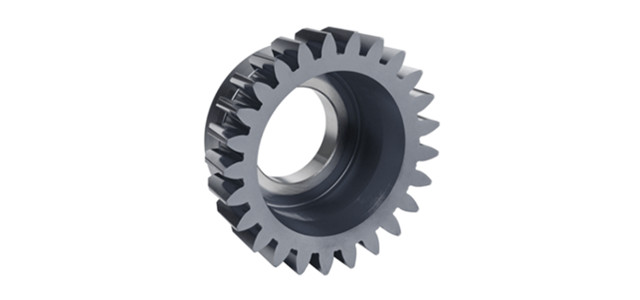

Both spur type and helical type Gear Shaping cutters are made

Designing and Production of relief ground Shaping cutters for involute splines, worms (cutter to be used in hobbing machine by kinematics inversion process) and relief machined cutters for sprocket, parallel sided splines etc., are done at Jiangxing Tools.

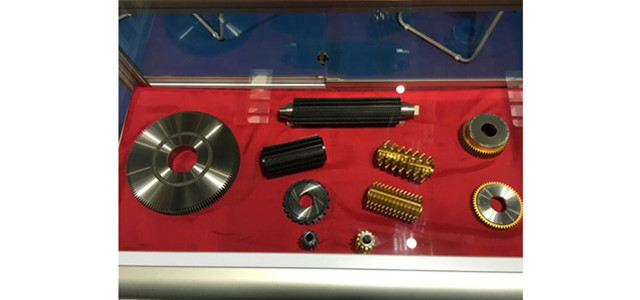

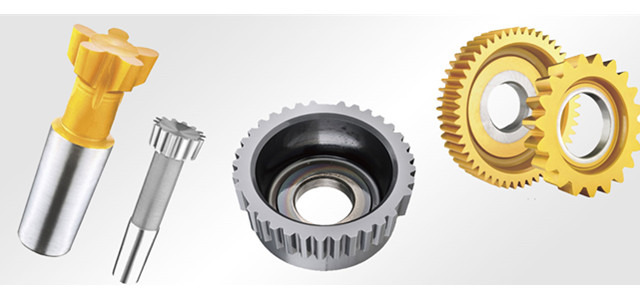

The range of Shaping cutters available at Jiangxing Tools includes different varieties of disc type, hub type and shank type. Tandem Shaping cutters are also supplied

Shaper cutter material is generally AISI M35 (6-5-2+5%Co). On special request, Shapers made in powder material (ASP2030, ASP2052,S390) and TiN, TiAIN, Alcrona Pro coated Shapers are supplied.

Normally, accuracy classes are as per DIN 1829 Standard AA,A. However Gear Shaper cutters are made to suit other accuracy Standards also.
