Shank-type gear shaping cutter with DIN 5482
2021-10-18 13:41:41
jiangxingTools
3383
Shank-type gear shaping cutter with DIN 5482
Tooth profile to DIN5482 standard
Module: m1.6-m2.25
Number of teeth: Z5-20
Pressure angle: 30°
Morse taper: Mk2, Mk3

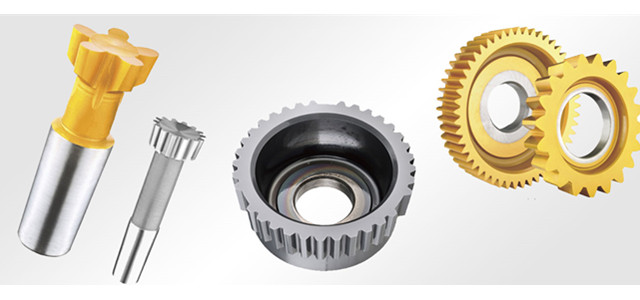

Shank type gear shaper cutters are full form generated however small the pitch circle diameter (PCD), although the strength of the cutter produced is the limiting factor. The strength and rigidity of shank type cutters is greatly improved by the Jiangxing Tools ribbing method and is especially advised for those of small PCD.
