Comparision of Gear and Hob Class
2021-09-28 10:57:25
jiangxingTools
3238
Comparision of Gear and Hob Class

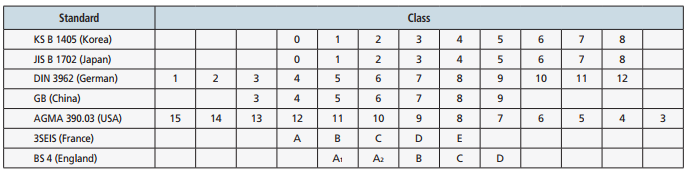

1,Comparision of Gear Class

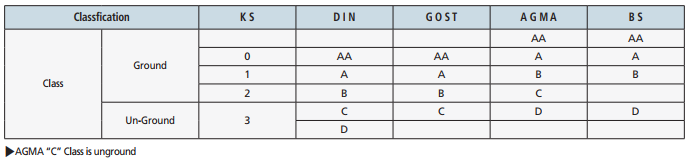

2,Comparision of Hob Class
