Hobs for parallel side splines

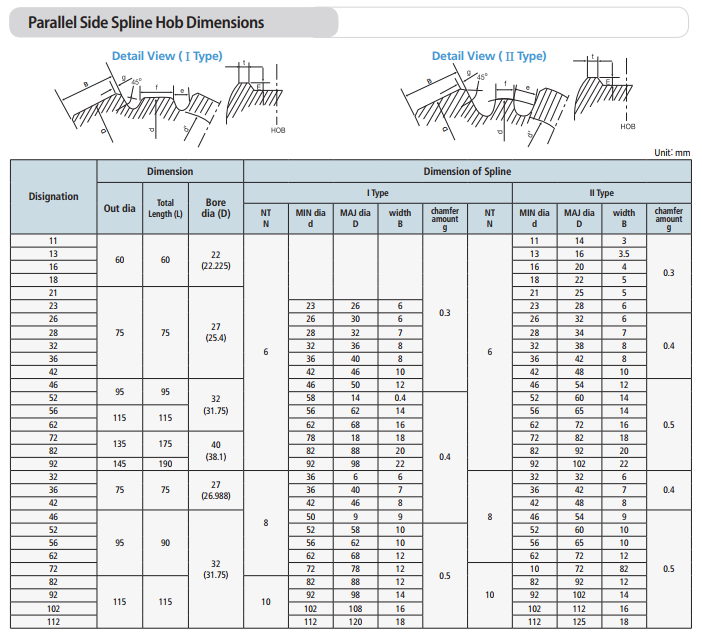

This following table shows that standard hob dimensions to manufacture parallel side spline,
please contact us for more details on parallel side spline gear hob by our website.
