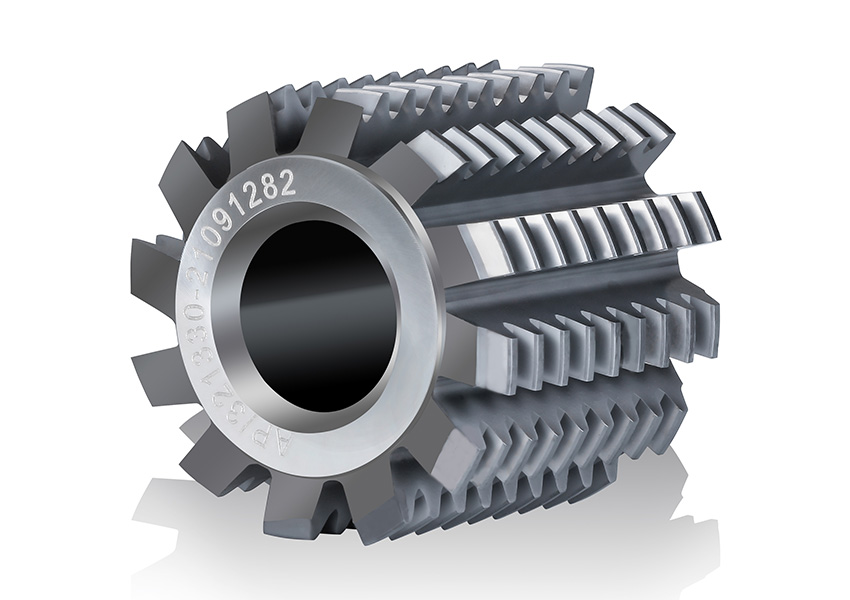

Low Speed Bore Type Solid Carbide Hob for Soft Tooth Oil Cutting
base material: ordinary tungsten alloy die casting,eg: N218/N318
it is bore type solid gear hobs with BALINT ALCRONA PRO coating, used on slow traditional gear hobbing machine or high speed gear hobber.
recommended linear speed: 60m/min-150m/min
recommended hob feed is 0.3-0.8mm/r
oil cooling cutting environment
recommended hardness of processed material is ≤HRC 30°
accuracy class quality DIN A, AA
standard tooth profile: topping, non-topping
module range: m0.2-m2,PA20°， PA30°
generally the OD is 25mm, 32mm, Length is 20mm, 30mm, 50mm, etc. Bore is 8mm, 10mm and 13mm
Carbide gear hobs for finishing cut, pre-grinding, pre-shaving, splines
