PA20° Module m3.75 Standard Involute Gear Hobbing Tool
2022-05-31 15:59:41
jiangxingTools
2780
PA20° Module m3.75 Standard Involute Gear Hobbing Tool

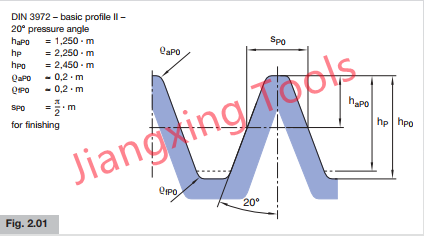

Tooth profile: DIN3972-2 standard, GB
Material：HSS M2, M35, ASP2030, ASP2052, S390
Accuracy：AA, A to DIN3968
Hob specification：OD 90 * Length 90 * Bore 32mm
Module: m3.75, with pressure angle: PA20°
