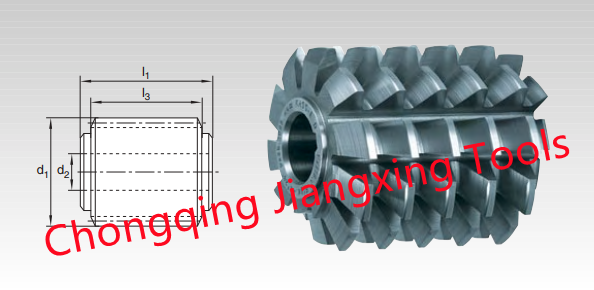

HSS gear hob cutter with relief ground DIN 8002 B

solid type gear hobs for spur and helical gears to

module pitch

20° pressure angle

basic profile II to DIN 3972

single start right-handed, with drive slot

Dimensions for std gear hob cutter, relief ground, quality grade A to DIN 3968, DIN 8002 B as following:

The complete range of gear hobbing tools produced by us, besides large modules gear hobs, is completed by

- Solid gear hobs from m0.5 -m24 mm

- Spline hobs (parallel side or involute such ASA)

- Roller chain sprocket hobs

- Carbide hobs

- Worm gearl hobs, shank type or bore type

- Timing pulley hobs

- HM solid gear hobs

The precision class of gear hobs obviously is regulated by international standards such Din 3968 (class A and class AA)
