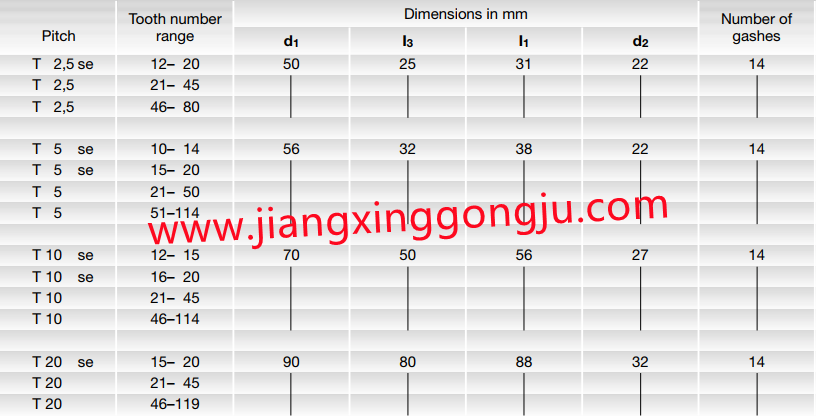

Gear hobs for synchroflex timing belt pulleys
topping cutter
quality grade A to DIN3968
single start, right-handed
with keyway
The "se" tooth gap from is applied up to 20 teeth incl. over 20 teeth=normal profile
